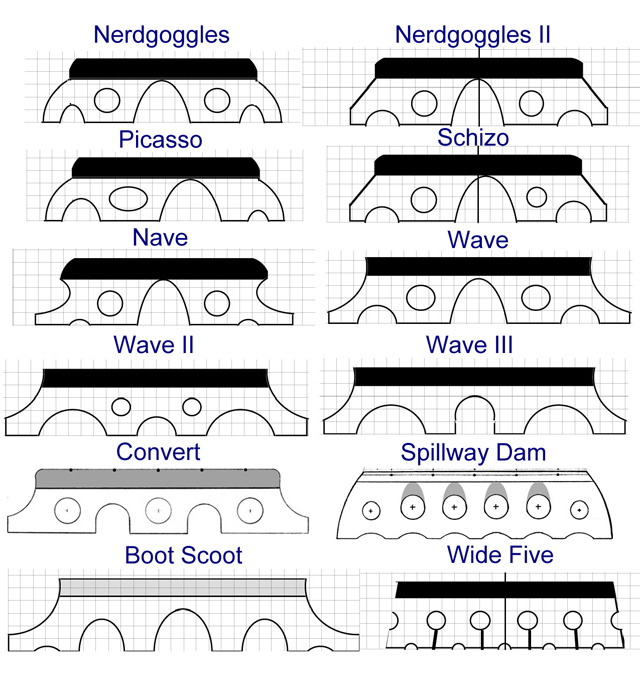

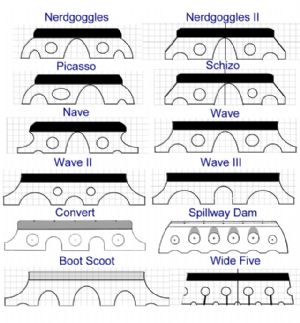

This is a composite that shows most of the experimental bridge profiles that I have built in the last 2 years. When I make a bridge, I paste a scale version of the drawing on my bridge blank for drilling & cutting.
1 comment on “Bridge Plans/Drawings”
Cotton-eyed Joe Says:
Wednesday, December 2, 2009 @6:45:31 AM
Jerry,
Wonderful bridge profiles...
Have you tried them all on your banjo...
And which one works best...
Just likin' the drawin' of the picasso.
'appy pickin'
