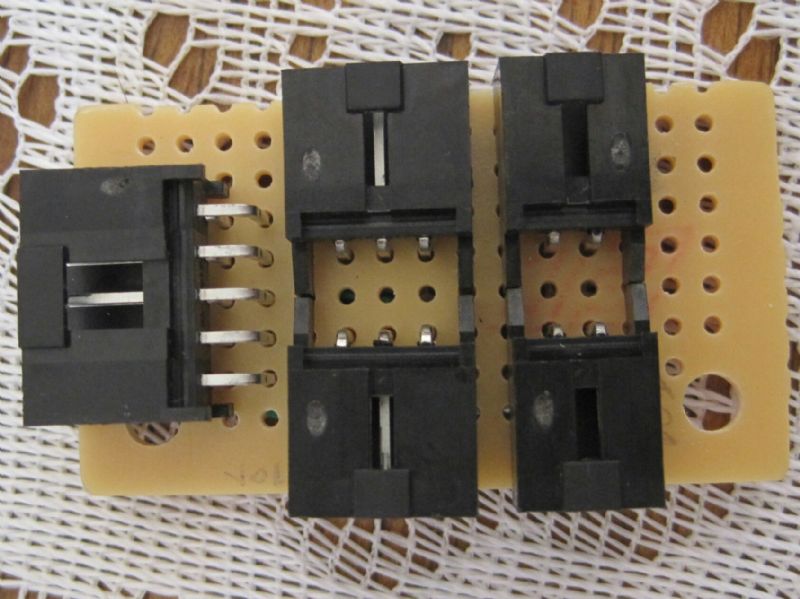

A 10 pin header from the pre-amp breaks out to a 3-pin volume control, 3-pin second pickup (future), 2-pin primary pickup, and 2-pin battery.
