Mar 14, 2026 - 12:21:18 PM
2513 posts since 4/14/2009

Hi I got my old banjo out the other night ,hadnt played in years .. It seems like the action is higher.. Can anyone tell me how this system works??




Mar 14, 2026 - 1:26:10 PM
like this

6787 posts since 5/29/2011

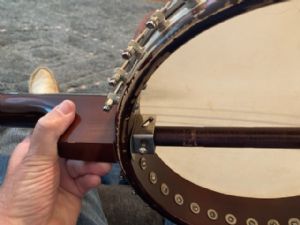

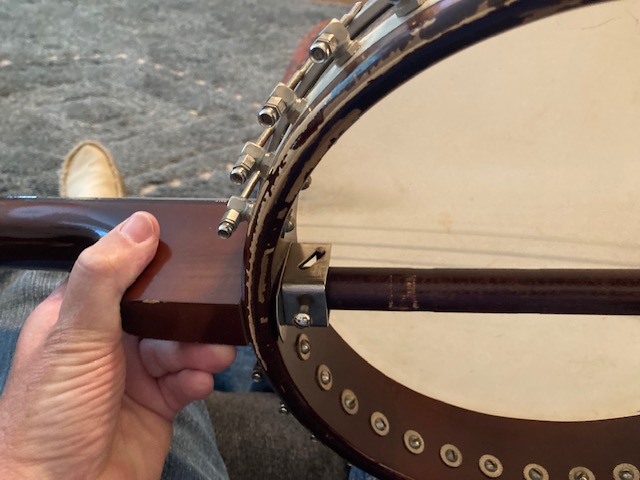

That's a Waverly neck brace. It's not designed to adjust the action; it just keeps the neck in place. The quickest way to lower the action is to use a lower bridge. You don't have a lot of leeway to adjust the action on this banjo.

Mar 14, 2026 - 2:34:39 PM
likes this

16414 posts since 10/30/2008

Is the neck currently "loose" on the connection to the pot, in any way? Can you wiggle the neck up and down in relation to the pot? If so, that neck brace might be loose. If it is, push upward on the heel of the neck to get the fingerboard up a little higher in relation to the plane of the head, and see if the action becomes a bit lower. Then use the neck brace to tighten the neck to the pot, in that spot.

It might not work, but it's worth checking. Sometimes there is some slop in the size of the opening that the dowel stick goes through, permitting the neck to move up and down a little... If the dowel already fits tight in the square hole in the rim, you're basically stuck with learning to play high action, or switching to a shorter bridge.

Good luck.

Mar 14, 2026 - 5:23:02 PM

2513 posts since 4/14/2009

quote:
Originally posted by Culloden

That's a Waverly neck brace. It's not designed to adjust the action; it just keeps the neck in place. The quickest way to lower the action is to use a lower bridge. You don't have a lot of leeway to adjust the action on this banjo.


Mar 14, 2026 - 5:24:15 PM

2513 posts since 4/14/2009

Thanks I may have to try a lower bridge. But it was fine before I stored it idk

Mar 14, 2026 - 5:33:10 PM

2513 posts since 4/14/2009

Thanks I was a little sloppy. I think tightening helped a bit. I just can't understand why it changed. I've played the heck out of it made videos for YouTube. It was a good player to me
Originally posted by The Old Timer

Is the neck currently "loose" on the connection to the pot, in any way? Can you wiggle the neck up and down in relation to the pot? If so, that neck brace might be loose. If it is, push upward on the heel of the neck to get the fingerboard up a little higher in relation to the plane of the head, and see if the action becomes a bit lower. Then use the neck brace to tighten the neck to the pot, in that spot.

It might not work, but it's worth checking. Sometimes there is some slop in the size of the opening that the dowel stick goes through, permitting the neck to move up and down a little... If the dowel already fits tight in the square hole in the rim, you're basically stuck with learning to play high action, or switching to a shorter bridge.

Good luck.


Mar 14, 2026 - 6:58:53 PM
like this

2865 posts since 2/9/2007

It's possible that the dowel stick has come loose from the neck. In that case maxing out the neck clamp like it seems to be would have actually raised the action, by pushing the rim out of shape.
