ARCHIVED TOPIC: Baldwin/Ode neck adjustment tool

Please note this is an archived topic, so it is locked and unable to be replied to. You may, however, start a new topic and refer to this topic with a link: http://www.banjohangout.org/archive/399103

Ralph Stanley legend - Posted - 08/28/2024: 07:55:33

Dear all
Does any kind soul have one of the above, or one they have fashioned that works ? I live over in the UK and will cover cost to you. Thank you all !

SamCy - Posted - 08/28/2024: 09:59:55

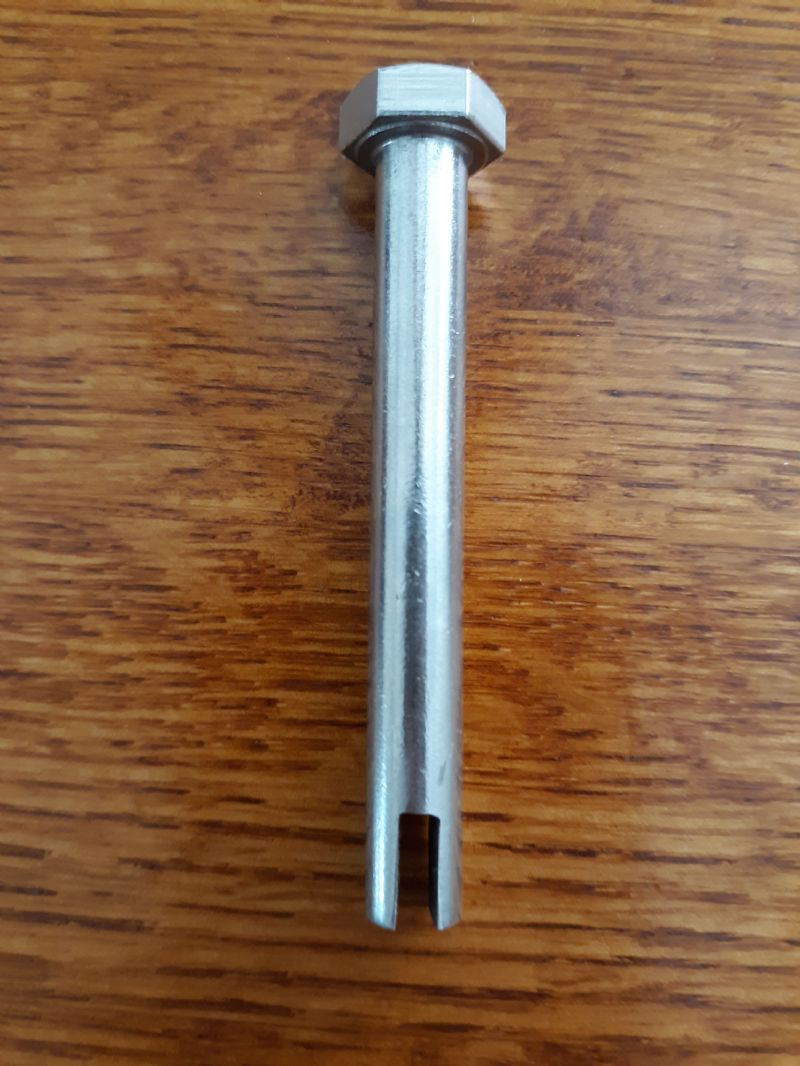

I made one out of a 5/16" hex bolt, cutting off the threads and sawing a slot in the end to fit the "flat screwdriver" shaped blade on the post. Be aware that the adjustment has a 10:1 gear, so it takes several turns to see any result.

5/16 hex bolt

banjonz - Posted - 08/28/2024: 15:55:21

In the 70's I had a Baldwin ODE D. the adjusting tool supplied was a squashed at the end tube with a T bar through the other end. It was a bit bodgy but did work.

asmcsgac - Posted - 08/29/2024: 03:36:40

I did the same thing with an old screwdriver.

SamCy - Posted - 08/30/2024: 15:38:04

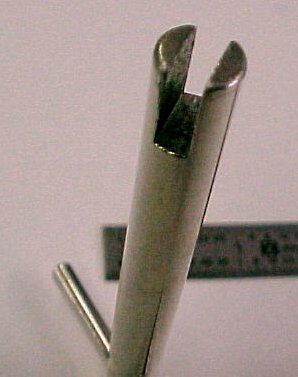

See the picture of the original adjustment tool.
