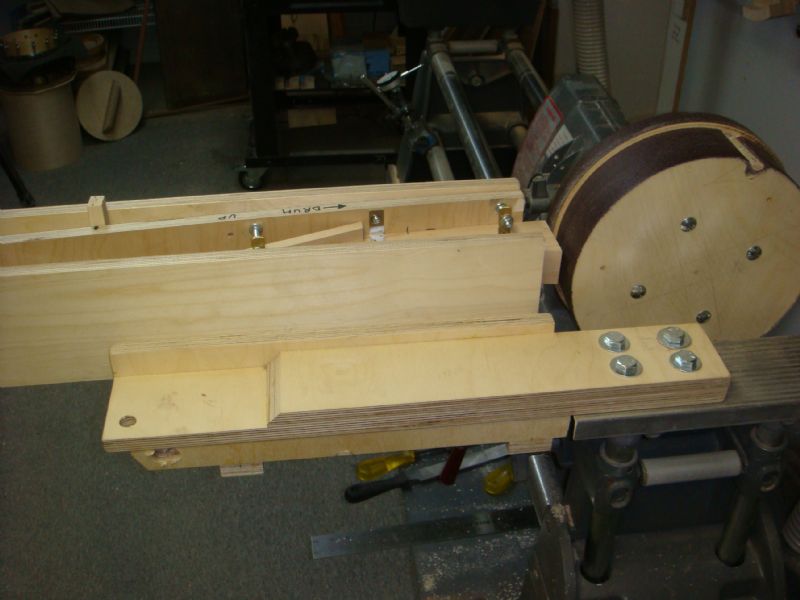

The whole rig is mounted to an extension table that mounts into the ShopSmith end frame. Notice the heaviness of the mount to the table so it keeps the rig perpendicular to the drum with no flexing. Height is controlled with stop rings on the extension table tubes. This keeps the rig centered to the spindle.
